Outfitting A Suction Dredging Project

By Dave McCracken

How to outfit a suction dredging project, to a large degree, comes back to how you would answer the following questions:

1) What am I trying to accomplish;  (sampling, production, or both)?

2) Where?

3) In what period of time?

4) How much of a budget is available for acquisition of equipment?

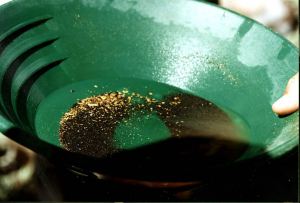

A gold (and/or gemstone) mining project basically should to be looked at in two separate steps. First you sample to locate a viable deposit. Then you launch into a production program to recover the gold or other valuable minerals from the deposit. Generally, the idea is to minimize investment into a particular mining property until a viable deposit has been located and verified.

Production-equipment is commonly larger and is more expensive to purchase and move around. The logistical infrastructure to support a production operation is usually more substantial and costly than what is required to just go in somewhere for a short sampling program. So generally-speaking, a production operation costs more to set up, and involves more gear to move around and put into place. Therefore, under many circumstances, it is wise to first verify that a viable deposit exists on a property before a substantial investment is made. The idea behind sampling is to minimize risk.

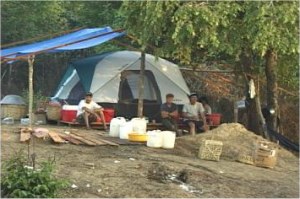

A typical camp to support a preliminary sampling operation usually would involve just the basic necessities.

The answers to “Where?” and “For how long?” also impact upon your decision about what gear to buy. For example, if you are not tied to just one mining property, and you are prepared to launch a sampling program onto different properties until you find what you are looking for, then it would be a good idea to invest in good sampling equipment that is portable enough to move around the properties that you are looking at. In this case, the capital expenditure is not tied to a single property, but rather into a portable sampling infrastructure that can be used for an extended period of time in many different places.

While sampling-gear is more portable, the smaller the size of a dredge, the less volume of streambed material it will process (in the same experienced hands), and the less-deep it will effectively excavate a sample into the streambed. So, you trade-off productive effectiveness and the capability to make meaningful, deeper samples as you reduce dredge-size and gain in portability.

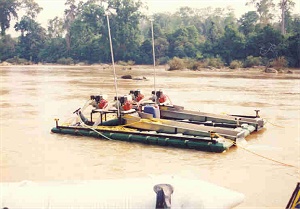

Two Pro-Mack 5-inch dredges were used to find rich deposits on this river in Cambodia, before a 10-inch production dredge was brought on line.

As an example of this, a 4-inch dredge can effectively sample down to around 4-feet deep (in hard-packed streambed material). A 5-inch dredge can excavate about twice the volume of as that of a 4-inch dredge down to around 5-feet of material. But the bulk of gear to move around is about twice as much.

A 6-inch dredge can excavate about twice the volume of as that of a 5-inch dredge down to around 6-feet of material. But the bulk of gear to move around is about twice as much.

An 8-inch dredge can excavate about twice the volume of as that of a 6-inch dredge down to around 8-feet of material. But the bulk of gear to move around is about twice as much.

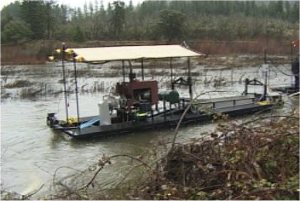

  Ten-inch Pro-Mack dredge operating in Northern California.

A 10-inch dredge can excavate about twice the volume of as that of an 8-inch dredge down to around 10-feet of material. But the bulk of gear to move around is about twice as much. By now, we are talking about a pretty substantial platform. But it still remains portable enough to place inside of an ocean shipping container, and can be towed around on wheels behind a small truck.

These are just guidelines, because conditions change from one location to the next. It does not mean you cannot dredge deeper. But it generally does mean that the deeper you go beyond these guidelines, the less effectively your time will be spent. This is mostly a matter of over-sized rock management. All rocks that are larger than the intake-size of the dredge’s suction nozzle must be moved out of the way by hand. When dredging in an average hard-packed streambed, at the point where an experienced operator gets down through 5-feet of material using a 5-inch dredge, he has so many rocks to get out of the dredge hole, that he is lucky to spend half his dredging-time sucking up gravel.

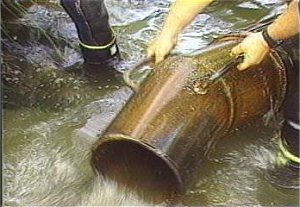

Bigger dredges get more accomplished primarily because they will suck up larger-sized rocks.

Under most circumstances, there are a proportionate greater number of smaller-sized rocks in a hard-packed streambed, than larger-sized rocks. So this is really a discussion about effective time-management. Since a larger dredge will suck up a larger rock, it means the operator won’t have to move smaller-sized rocks by hand. So he will spend his time moving even larger rocks out of his way, of which there are proportionally-fewer. This means he will get more done, faster – and be able to dredge deeper into the material before he reaches the point that there are too many rocks to move out of the way.

Using a 5-inch dredge will mean having to move many, many more rocks by hand that would more-easily be sucked up the nozzle of a larger dredge.

This important reality cannot be overcome by positive thinking or an abundance of motivation. We are talking about the physical reality of how an excavation is accomplished. The size of the dredge-nozzle determines what size of rock can be sucked up (easy), and what must be moved out of the hole by hand (lots more effort).

So when deciding what to acquire for a sampling or production dredge, it is necessary to balance the desire to get more productive activity accomplished (bigger dredge), with the necessity to remain portable (not so big that you cannot move it around to find what you are looking for). This must be decided on a case-by-case basis.

Here is my advice: Go as big as you can, without forfeiting the portability that is required for your situation. I suggest these important decisions can only be wisely made after at least a preliminary evaluation of the project-area is accomplished.

Once you have proven-out your deposit(s) by sampling, you can feel comfortable investing in production equipment and support-infrastructure to develop the project. In that case, bigger is not always better. A lot will depend upon the depth of water and streambed where you will be dredging. For example, a 10-inch dredge might not be as productive as a 6-inch dredge in a shallow-water, shallow-streambed area where the dredge cannot be floated around easily.

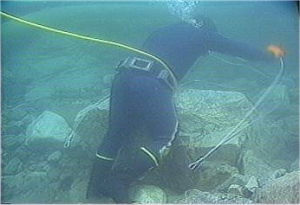

Another example is where shallow streambed material is made up largely of boulders that must be winched out of the way. In this case, your money might be better invested into a good mechanical or hydraulic winch, rather than a large dredge.

A well-done sampling program will result in a good production plan, based upon what it will take to obtain optimum production under the conditions which exist where the gold deposit is located.

I am not going to discuss sampling, production or recovery systems here, because they have been covered in other articles. But since the type of equipment you should acquire is directly related to these subjects, I suggest it is a good idea to review the material closely.

Some dredges are made to operate from the surface with the use of an automated cutter-head device at the nozzle. These are generally ineffective in hard-packed streambeds that are mostly made up of oversized rocks.

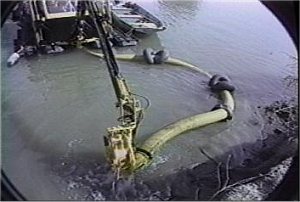

Some dredges are available with hydraulic-powered cutter-heads to help with the excavation. These are mechanical devices that help feed material evenly into the nozzle. They are most productive in doing channel-work in harbors or making navigation channels deeper or wider.

Hard-packed streambeds which are made up mainly of oversized rocks and boulders will usually destroy a cutter-head device in short order.



Here follows the normal steps in the development of a mining program:

1) Preliminary evaluation: This is where you take a hard look at the available information about a potential project, and you go out and have a direct look at the specific location(s) and surrounding area. You are looking at the potential for commercial gold (and/or gemstone) deposits. You are also looking at what it would take to accomplish a sampling program, based upon all of the information and observation you can bring together. A preliminary evaluation will often result in a preliminary sampling plan.

2) Sampling Program: Depending upon what the objectives are, sometimes sampling is accomplished in several stages. Generally, the purpose of a sampling program is to locate and verify the existence of a commercial deposit that is valuable enough to justify a production operation. Sampling should work out the recovery method upon which the deposit may be developed efficiently. A sampling program can evolve into feasibility planning to develop a mineral deposit.



3) Production Operation: Is full development of the deposit.

Equipment needs are usually different in each phase of a mining program.

While each project is different, during a preliminary evaluation, I personally always at least bring along a face mask (so I can have a look at the underwater environment where we would sample), gold pan and classification screen, zip-lock sample bags and marker pen, map, GPS, camera equipment, local money in small denominations (to buy mineral samples from local miners), a dozen bright-colored ball-caps (gifts for local miners), a bottle or two of whiskey (gift for the village chief), and the basic things I will need to visit that particular environment.

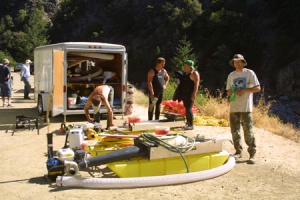

A sampling program will basically need the same things as will be required in a full production operation, but usually on a smaller and more portable scale. Here follows a basic outfitting list:

Dredging Equipment:
Dredge
Boat (and motor?) and ores
Winching gear and rigging?
Pry-bars
Rope (floating)
Fuel containers
Complete set of tools needed to service the gear

Diving Equipment:
Face mask
Air reserve tank and fittings
Air line(s) & regulator(s)
Wet-suit?
Weight belt & weights
Protective foot ware (steel tips?)
Rubber work gloves (bring spares)

Clean-up Gear:
Wash tubs
Classification screens
5-gallon buckets
Scraping tool and/or hand scoop
Final concentrating equipment?
Gold pans
Steel finishing pans
Magnet
Gas stove
Weight scale
Zip-lock sample bags and marker pen

Support Gear:
Vehicle-support?
Shelter
Cooking & eating utensils
Wash tub for kitchen
Cook stove
Toilet facilities?
Portable chairs & table
Medical kit
Waterproof bag(s)
Ear infection preventative
Maps, GPS and camera equipment
Electric generator?
Camp lights
Paper and pens
Communication equipment?
Flashlights & batteries
Knife
Firearm?

Supplies:
Drinking water or filters
Food supplies and containers
Fuel & motor-oil for all motors
Dish washing detergent
Chlorine for sanitizing cleaning water
Laundry wash tub and soap
Hand-wash soap
Tissue paper
Cook stove fuel or canisters
Duct tape
Nylon line (plenty)
Plastic trash bags
Zip-lock bags & plastic containers for food

Spare Parts (priority often depends upon how remote the project location is):
Tune-up replacement parts for all motors
Extra water pump seals and bearings
Extra compressor & alternator belts
Rebuild kit for air compressor
Extra air compressor?
Rebuild kits for diver regulators
Extra dive regulators?
Repair kits for diver air lines
Extra diver air lines?
Extra air fittings
Extra water pressure and intake hoses
Extra water hose fittings
Extra rubber hose seals (each size)
Extra foot valve
Extra suction hose?
Extra face mask(s)
Extra starter & alternator & fuel pump for dredge motor?
Spare tire (if dredge has removable wheels)
